FURTHER PARTICLE SIZERS




Particle Sizer

ANALYSETTE 28

ImageSizer

Order No.
28.2000.00
Accessories

Each ANALYSETTE 28 ImageSizer with USB-interface is delivered with a computer* with already installed ImageSizing-Software ISS, monitor, keyboard and mouse.

*Except deliveries to CIS countries

Choose according to your measuring task dry or wet measurement!
For dry measurement please order lenses according to the desired measuring range.
For wet measurement please order wet dispersion unit, lenses according to the desired measuring range and if required ultrasonic box separately.

For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27

Maintenance and Recalibration of your Particle Sizer on request. Colour ink jet printer and laser printer on request.

Lenses for dry measurement of powders and bulk solids

Choose according to your measurement task the right lens!

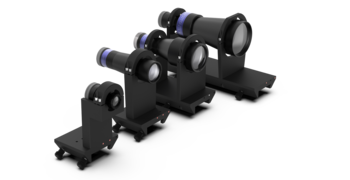

In order to use the ANALYSETTE 28 ImageSizer you will need at least one telecentric lens. Three telecentric lenses with different measuring ranges are available. Order the desired lenses separately according to the measuring task. They can all be retrofitted at any time, and are easy to replace.

Select telecentric lens

Lenses with holder, feeder and funnel

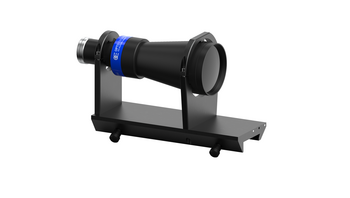

telecentric lens enlargement 0.157x
No. 28.2060.00
telecentric lens enlargement 0.157x

Telecentric lens enlargement 0.157x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 90 µm – 20 mm, depth of field ~ 27 mm), for dry measurement of powders and bulk solids.

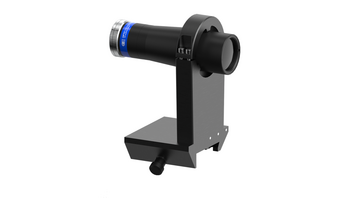

telecentric lens enlargement 0.35x
No. 28.2061.00
telecentric lens enlargement 0.35x

Telecentric lens enlargement 0.35x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 40 µm – 9 mm, depth of field ~ 5 mm), for dry measurement of powders and bulk solids.


telecentric lens enlargement 0.735x
No. 28.2062.00
telecentric lens enlargement 0.735x

Telecentric lens enlargement 0.735x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 20 µm – 4.5 mm, depth of field ~ 1.2 mm), for dry measurement of powders and bulk solids.


Dispersion unit and lenses for wet measuring of suspensions and emulsions

Select according to your measurement task the right lens and accessories!

Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids. Select an ultrasonic box if you frequently measure sample material that tends to agglomerate.

Please select the wet dispersion unit

Wet dispersion unit

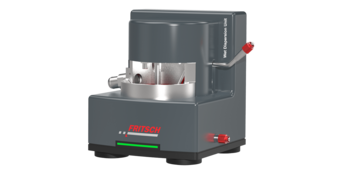

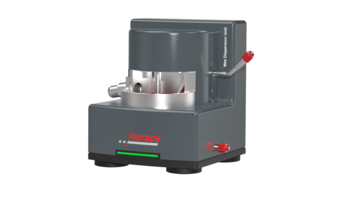

wet dispersion unit incl. flow measuring cell and telecentric lens
No. 28.2600.00
wet dispersion unit incl. flow measuring cell and telecentric lens

Wet dispersion unit incl. flow measuring cell for automatic dispersion,
volume 150-500 ml


A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.


Read details about our wet dispersion unit here

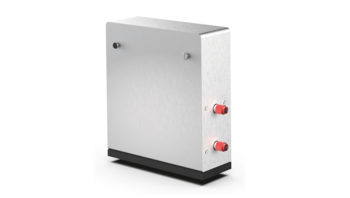

Ultrasonic box for 200-240 V/1~
No. 22.9270.00
Ultrasonic box for 200-240 V/1~

for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 200-240 V/1~, 50-60 Hz, 60 Watt


If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE  additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.


Ultrasonic box for 100-120 V/1~
No. 22.9280.00
Ultrasonic box for 100-120 V/1~

for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 100-120 V/1~, 50-60 Hz, 60 Watt


If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.


Lenses with holder

telecentric lens enlargement 0.35x
No. 28.2017.00
telecentric lens enlargement 0.35x

Telecentric lens enlargement 0.35x (measuring range ~ 20 µm – 3000 µm, depth of field ~ 5 mm), for wet measurement of suspensions and bulk emulsions.


Telecentric lens enlargement 0.735x
No. 28.2018.00
Telecentric lens enlargement 0.735x

Telecentric lens enlargement 0.735x (measuring range ~ 10 µm – 2000 µm, depth of field ~ 1.2 mm), for wet measurement of suspensions and bulk emulsions.


Telecentric lens enlargement 1.333x
No. 28.2501.00
Telecentric lens enlargement 1.333x

Telecentric lens enlargement 1.333x (measuring range ~ 5 µm – 1000 µm, depth of field ~ 0.5 mm), for wet measurement of suspensions and bulk emulsions.


Spare parts for wet dispersion unit

Measuring cell glass 4 mm for flow measuring cell
No. 22.9251.26

Replacement flow measuring 4 mm cell for inserting into the flow measuring cell of the wet dispersion units 22.9200.00 and 28.2600.00.


Easy cleaning and exchange of the measuring cell
The measuring cell for the ANALYSETTE 22 NeXT and ANALYSETTE 28 ImageSizer is simply inserted from the front into the instrument as a practical cartridge and can be opened without tools with an eccentric lock. Its cleaning is quite convenient by an easily re-insertable outer seal. And also the exchange of the measuring cell glasses can be done any time completely uncomplicated.


Accessories for certified calibration

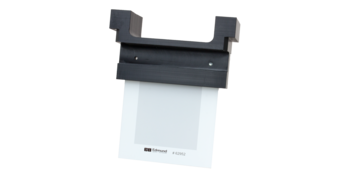

For certified calibration of the Particle Sizer ANALYSETTE 28 ImageSizer, two different calibration plates are offered. Please choose the appropriate calibration plate according to the lens used.

Select calibration plate

calibration plates

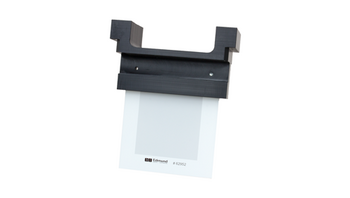

Calibration plate with 0.5 mm dots
No. 28.2224.00
Calibration plate with 0.5 mm dots

Calibration plate with 0.5 mm dots with certificate for telecentric lenses enlargement 0.157x and 0.35x.


Calibration plate with 0.125 mm dots
No. 28.2225.00
Calibration plate with 0.125 mm dots

Calibration plate with 0.125 mm dots with certificate for telecentric lenses enlargement 0.735x and 1.333x

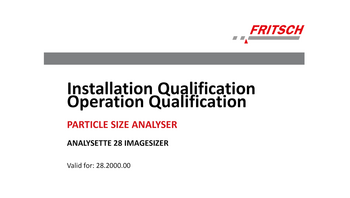

IQ/OQ documentation (questionnaire format - implementation by customer)
No. 96.0090.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Particle Sizer ANALYSETTE 28 ImageSizer.
