Rotary Cone Sample Divider

LABORETTE 27

Order No.
27.1420.00
Product details
Accessories

Please note: For this FRITSCH Rotary Cone Sample Divider, you require a dividing head, which is offered with various division ratios (1:8,1:10,1:30) and in various materials. We supply dividing heads and sample delivery funnels for every sample material. Sample bottle are available in various sizes.

For automatic feeding combine your Rotary Sample Divider with:
Vibratory FeederS LABORETTE 24

Variable Speed Rotor Mill PULVERISETTE 14 classic line

Dividing heads incl. sample bottles and funnel

Selection aid

  • Overview Dividing Heads LABORETTE 27

    Division ratio Division 1:8 Division 1:10 Division 1:30
    Materials Plastic POM or aluminium Plastic POM or aluminium Plastic POM or coated aluminium
    Number of divided portions 8 10 3
    Max. feed size 10 mm 10 mm 2.5 mm
    Max. sample amount 4,000 ml 2,500 ml 300 ml
    Division dry/wet dry/wet dry/wet dry/wet
    Useful volumes of sample bottles 32, 250, 500 ml 32, 250 ml 15, 20, 30 ml
  • Additional Information

    Thread of sample bottles: GL 55, other threads for your own sample containers on request.

Dividing heads are available in the division ratios of 1:8; 1:10 or 1:30 made of stable POM plastic. Anodised aluminium dividing heads – 1:8 and 1:10 – are available for materials and suspensions with abrasive properties. For especially aggressive solids and suspensions, select the resistant PTFE-coated aluminium dividing head 1:30.

Select dividing heads

Division ratio 1:8

made of POM plastic
No. 27.1300.00

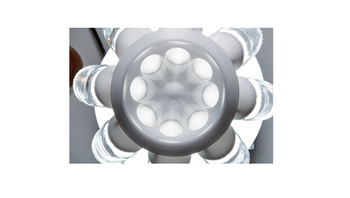

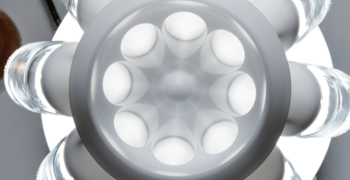

Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.1150.00) for the division of materials and suspensions, which produce abrasion at the surface.


Element Analysis
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
No. 27.1150.00

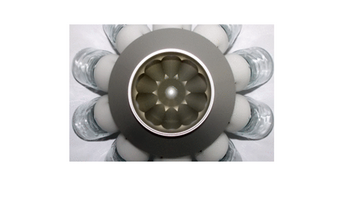

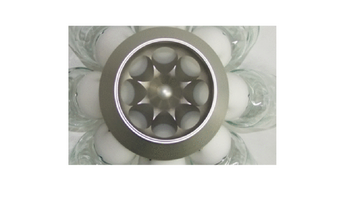

Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.1300.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


Element Analysis
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Division ratio 1:10

made of POM plastic

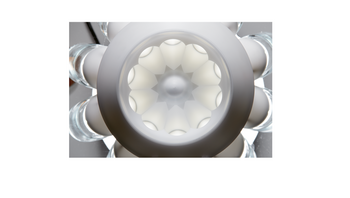

No. 27.5150.00
Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10 Max.
Permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.4150.00) for the division of materials and suspensions, which produce abrasion at the surface.


Element Analysis
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
No. 27.4150.00
Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10
Max. permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.5150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


Element Analysis
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Division ratio 1:30

made of POM plastic
No. 27.6150.00

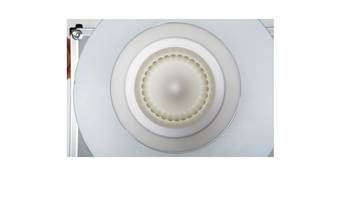

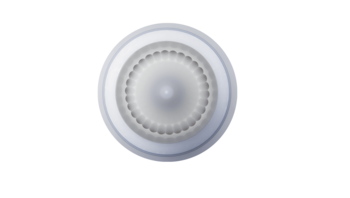

Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: The dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in PTFE coated aluminium (article no. 27.2150.00) for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.


Element Analysis
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of PTFE coated aluminium
No. 27.2150.00

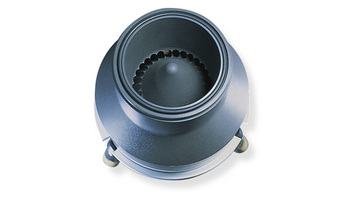

Dividing head made of PTFE coated aluminium

PTFE coated aluminium is recommended for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: This dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in POM plastics (article no. 27.6150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


Element Analysis
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

Sample bottles

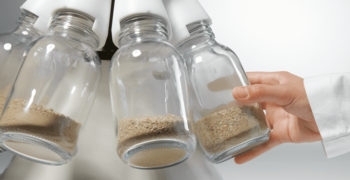

Sample bottle are offered in various sizes from 15 ml to 500 ml. Additionally available are specially developed plastic inserts with 32 ml volume for insertion into the 250 ml and 500 ml sample bottles for smallest quantities.

Select sample bottles

Sample bottles

Sample glass 250 ml
No. 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Sample glass 500 ml
No. 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Sample vessel 32 ml
No. 83.3190.16

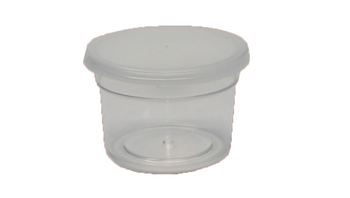

Sample vessel 32 ml

Sample vessel 32 ml with lid for sample bottle 250 ml and 500 ml.


For dividing smallest sample quantities, this sample vessel 32 ml can be inserted in the sample bottles 250 ml (article-number 27.1450.00) and sample bottles 500 ml (article-number 27.1460.00).


sample bottle 30 ml
No. 83.3120.00

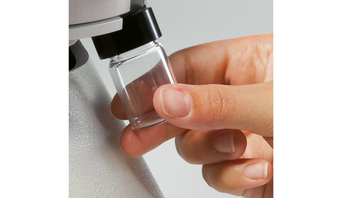

Sample bottle 30 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 20 ml
No. 83.3110.00
Sample bottle 20 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 15 ml
No. 83.3100.00
Sample bottle 15 ml

Sample bottle with lid can be used with dividing heads, division ratio 1:30.

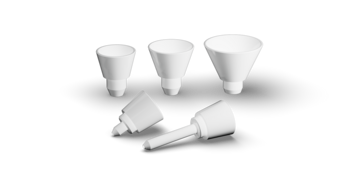

Funnels

Each dividing head of the LABORETTE 27 is delivered with a funnel of 10 mm diameter, the dividing heads with division ratios of 1:30 are additionally supplied with a 5 mm funnel. There are also funnels of 15 mm and 22 mm diameter for perfect adaptation to the respective particle size available, as well as special funnels for suspensions.

Select appropriate funnel

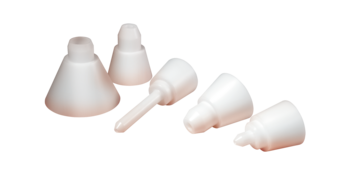

Funnels

5 mm dia.
No. 27.1290.16

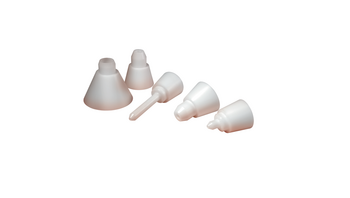

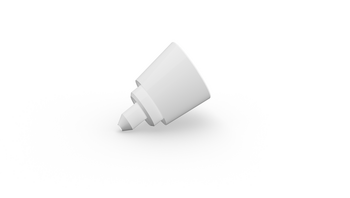

Funnel 5 mm dia. made of POM plastic

The funnel is also offered in 10, 15 and 22 mm dia. to suit the particle size of the sample being divided.
For the division of suspensions with dividing head, division ratio 1:30 a separate funnel, order no. 27.1330.16 is offered


5 mm dia. (only for division of suspensions with dividing head, division ratio 1:30)
No. 27.1330.16

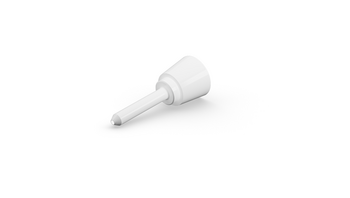

Funnel 5 mm dia. made of POM plastic

For the division of suspensions with dividing head, division ratio 1:30

The funnel is also offered in 5, 10 and 15, 22 mm dia. to suit the particle size of the sample being divided.


10 mm dia.
No. 27.1200.16

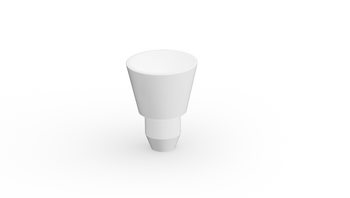

Funnel 10 mm dia. made of POM plastic

The funnel is also offered in 5, 15 and 22 mm dia. to suit the particle size of the sample being divided.


15 mm dia.
No. 27.1210.16

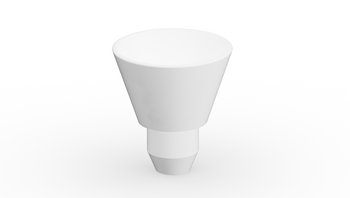

Funnel 15 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 22 mm dia. to suit the particle size of the sample being divided.


22 mm dia.
No. 27.1220.16

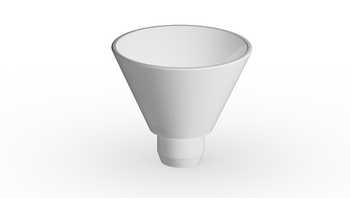

Funnel 22 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 15 mm dia. to suit the particle size of the sample being divided.


Further accessories

Protective device which prevents direct contact with the turning dividing head.
A certification for your Rotary Cone Sample Divider is also available as well as accessories for automatic sample feeding.

Select further accessories

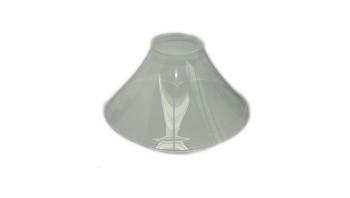

protective device

protective device, polyacryl
No. 27.1500.17
Protective device

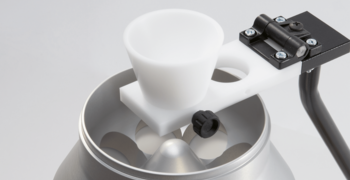

Made of colourless polyacryl, prevents direct contact with the turning dividing head.


Certification

IQ/OQ documentation (questionnaire format - implementation not included)
No. 96.0380.00

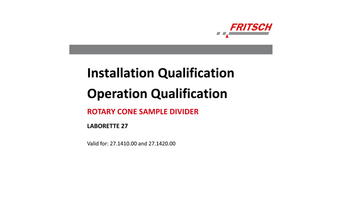

IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Rotary Cone Sample Divider PULVERISETTE 27.


ACCESSORIES FOR AUTOMATIC SAMPLE FEEDING

Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~
No. 24.0030.00
Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~

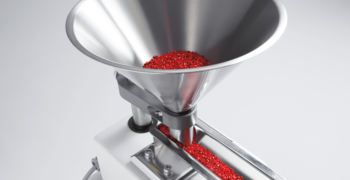

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 200-240 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


Vibratory Feeder LABORETTE 24 with V-shaped channel, 100-120 V/1~
No. 24.0040.00
Vibratory Feeder LABORETTE 24 with V-shaped channel,100-120 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 100-120 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


stand for Vibratory Feeder LABORETTE 24
No. 24.9100.00
Stand for Vibratory Feeder LABORETTE 24

solid stand - height adjustable, rotatable, stable


IQ/OQ documentation (questionnaire format - implementation not included)
No. 96.0370.00
IQ/OQ documentation (questionnaire format - implementation not included)
