| M260158 | |
| Plastics / textiles | |
| 3.0 mm | |
| 100.0 % < 300.0 µm | |
| 10.0 g | |
| We recommend using our P-29 with the helix pusher to grind all samples. |
|
|
Mini Cutting Mill PULVERISETTE 29speed: 6000 revolutions per minute |
|
| Equipment: |
rotor: Rotor with straight cutting edges optional accessories: Helix-Pusher sieve insert: 0,5 mm trapezoidal perforation material: stainless steel |
|
|
|
PA 6.6
|
|
|
|
10 g | |
|
|
5 mm | |
|
|
3 min | |
|
|
< 500 µm | |
|
|
The sample PA 6.6 was used for this test.
The sample was fed within 60 seconds. The grinding sound vanished slowly. After 2 minutes, the majority of samples was almost ground. We stopped the mill after 3 minutes. Electrostatic charged and ground sample below the sieve insert was brushed into the collecting vessel.
|
|
| Pictures: | Original PA 6.6 |
|

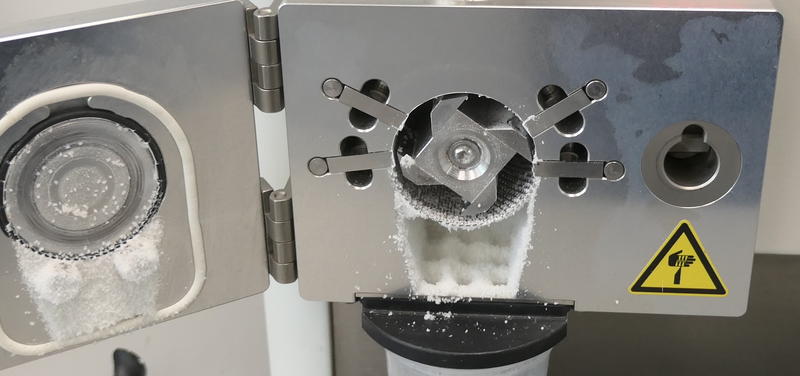

| Grinding chamber after the test |
|
|
|
|
Mini Cutting Mill PULVERISETTE 29speed: 6000 revolutions per minute |
|
| Equipment: |
rotor: Rotor with straight cutting edges optional accessories: Helix-Pusher sieve insert: 0,5 mm trapezoidal perforation material: stainless steel |
|
|
|
PA 6.12
|
|
|
|
11 g | |
|
|
5 mm | |
|
|
6 min | |
|
|
500 µm | |
|
|
The sample PA 6.12 was used for this test.
We brushed off electrostatic charged and ground sample below the sieve insert which increased the output to 9,8 grams (~ 1,2 g loss).
|
|

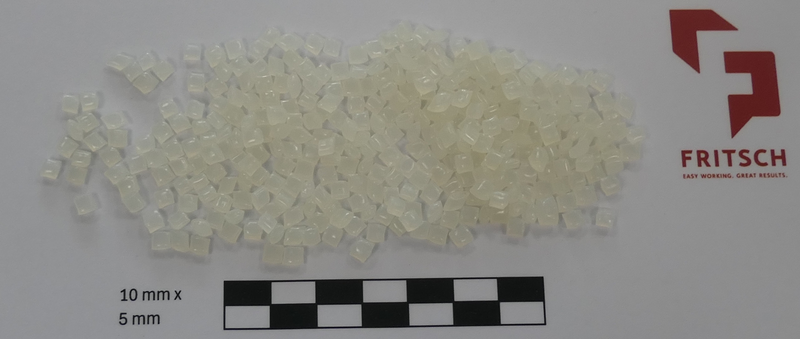

| Pictures: | Original PA 6.12 |
|

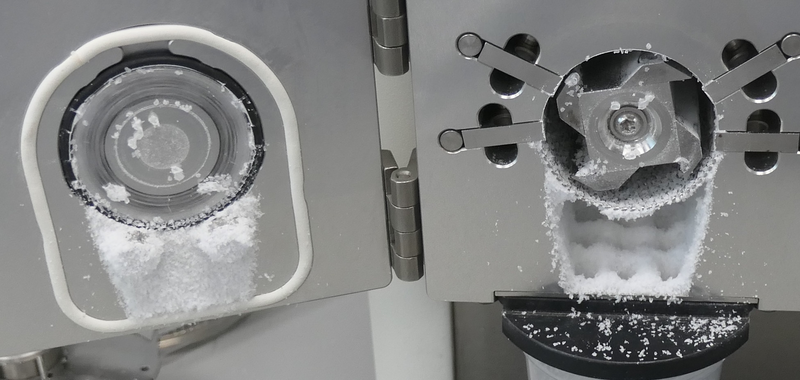

| Grinding chamber after the test |
|
|

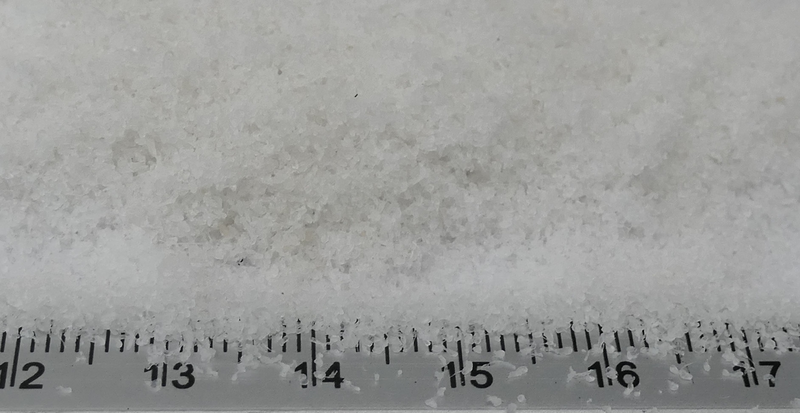

| Output < 0,5 mm |
|
|
|
|
Mini Cutting Mill PULVERISETTE 29speed: 6000 revolutions per minute |
|
| Equipment: |
rotor: Rotor with straight cutting edges optional accessories: Helix-Pusher sieve insert: 0,5 mm trapezoidal perforation material: stainless steel |
|
|
|
PA 6.10
|
|
|
|
12 g | |
|
|
5 mm | |
|
|
3,5 min | |
|
|
500 µm | |
|
|
The sample PA 6.10 was used for this test.
The sample was ground without problems. Electrostatic charged sample below the sieve were brushed into the collecting vessel. |
|

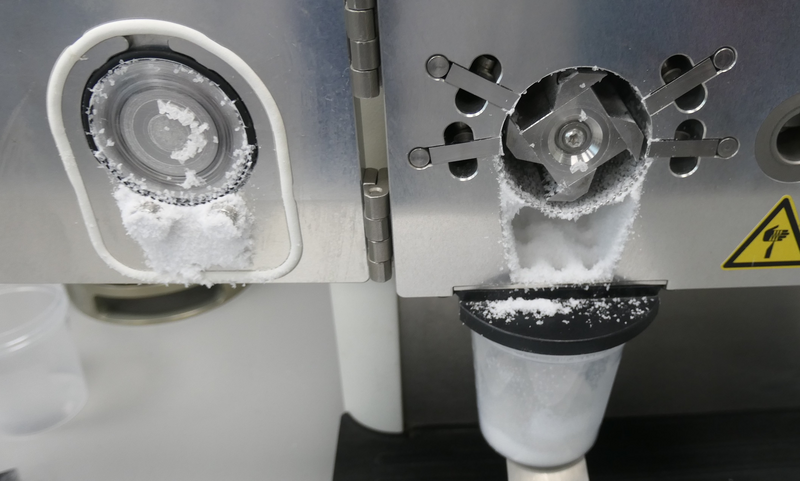

| Pictures: | Grinding chamber after the test |
|
