pumpkin

Protocol number:	M210370
Industry:	Foodstuffs
Feed Size:	12 mm
Desired Fineness:	150 µm
Quantity:	7 g
Recommendation:	In order to grind small quantities of the pumpkin sample to a fine powder, our Vibratory Micro Mill PULVERISETTE 0 equipped with the cryo-box is suitable for cryogenic grinding.

Result 1

	Vibratory Micro Mill PULVERISETTE 0 amplitude: 3,0 mm
Equipment:	Material: Hardened stainless steel Optional accessories: Cryo-Box number of grinding balls: 1 x Grinding Balls: 50 mm dia.grinding ball
Feed quantity:	7 g
Feed Size:	diameter 12 mm
Grinding time:	1,5 min
Final fineness:	fine powder 150 µm
Comments:	In this trial we used our Vibratory Micro Mill PULVERISETTE 0 with cryo-box and stainless-steel grinding set. We programmed an amplitude of 3,0 mm. We took a few grams of the pre-cut pumpkin sample as a batch. The pre-crushed sample as well as the grinding set were pre-embrittled and/or cooled with the help of nitrogen before grinding. The sample was finally placed in the grinding set and ground by an amplitude of 3,0 mm with continuous addition of small portions from liquid nitrogen for 1.5 minutes. The sample was ground to a fine powder which after evaporation of the liquid nitrogen became a paste again. The grinding set was cleaned with hot water and a dishwashing detergent.

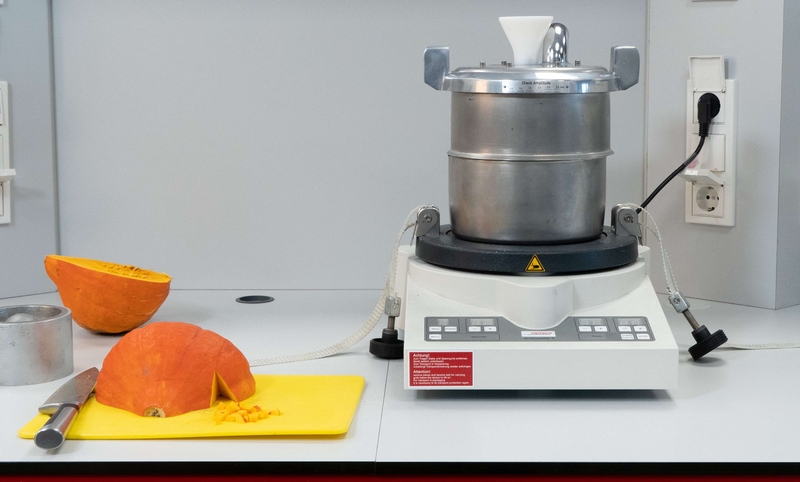

Pictures:	Pre-cut pumpkin sample and our Vibratory Micro Mill PULVERISETTE 0 with cryo-box

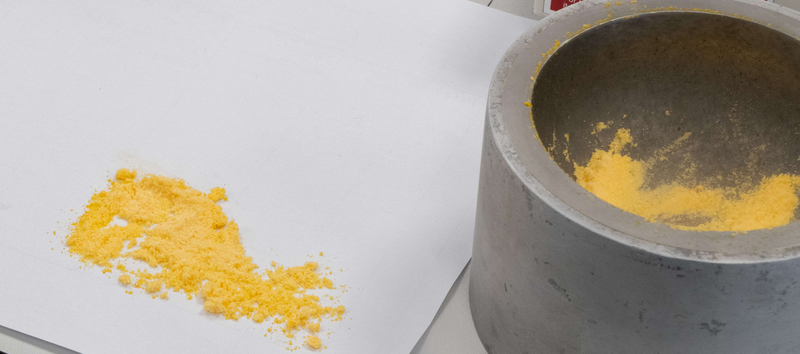

	Ground pumpkin sample after 1,5 minute of cryogenic grinding.
