Vibratory Feeder - with V-shaped channel

LABORETTE 24

Order No.
24.0030.00



AT A GLANCE

  • For uniform feeding of free-flowing materials of laboratory instruments
  • Maintenance-free components
  • Simple regulation of sample flow with separate control unit
  • Suitable for coarse and fine materials

Ideal for

  • NARROW, DIRECTED SAMPLE DISCHARGE
  • Overview

    Reliable automatic feeding

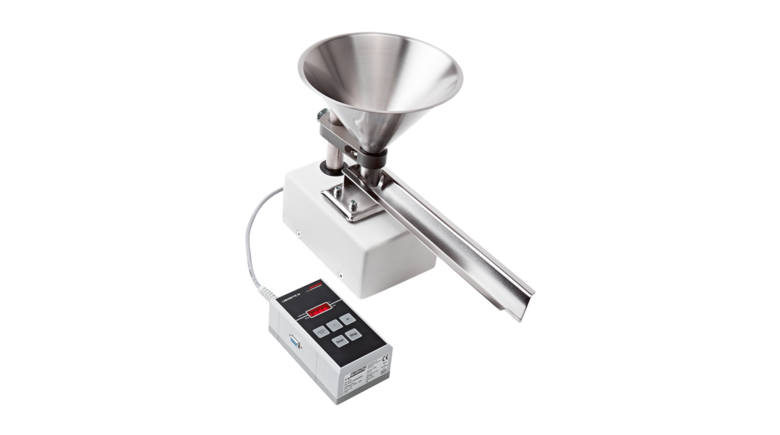

    The Vibratory Feeder LABORETTE 24 is ideal for automatic, uniform feeding of free-flowing materials into sample dividers, mills or mixers in your laboratory. The vibration, which is controlled by a microprocessor, conveys the sample material out of the funnel over the V-shaped stainless steel channel into the respective equipment. The flow rate can be individually adjusted; the vibration amplitude is precisely controlled – for absolute uniform feed of even smallest quantities. Safe and reliable.
    The Vibratory Feeder LABORETTE with a V-shaped feeder channel made of stainless steel is ideal for a narrow directed material feed between 1 g/min and 1,500 g/min.

  • WORKING PRINCIPLE

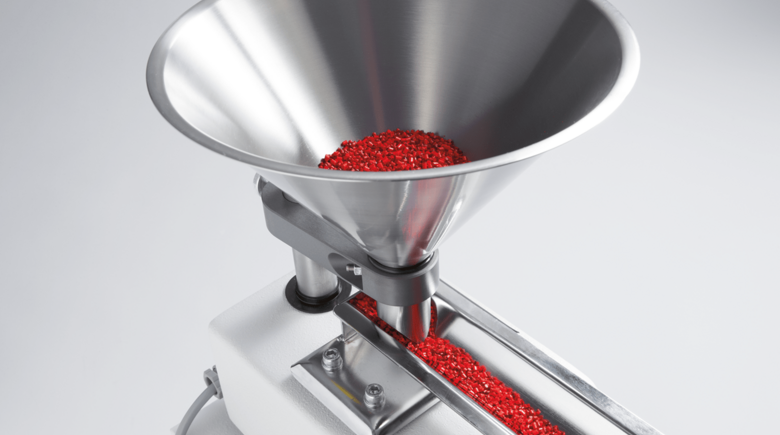

    Through vibration of a channel of stainless steel, free-flowing material is conveyed out of a funnel and to the open end of the channel in a uniform stream. The rate of flow can be controlled individually with a separate control device by modifying the vibration amplitude of the channel. Control of the vibration amplitude is performed by a microprocessor-controlled control unit with which even the smallest quantities of material can be conveyed with absolute uniformity.

  • FEATURES
    • As a standard, with polished stainless steel channel and funnel, PTFE-coating on request
    • Precisely controlled by microprocessor control with interface
    • Extensive choice of flow rates for smallest and largest quantities
    • Simple to clean due to easily removable components
    • Small footprint
    • Separate control unit for simple regulation of sample flow
    • Material bed height is variable, can be regulated by adjusting the funnel height according to the material
    • V-shaped and U-shaped channels easy to interchange
    • Maintenance-free electromagnetic drive and components
    • Recyclable, compact cast housing
    • Low energy consumption, only 0.1 kW drive power

    View accessories

  • EQUIPMENT / ACCESSORIES

    The FRITSCH Vibratory Feeder with V-shaped channel is delivered with funnel and control unit.

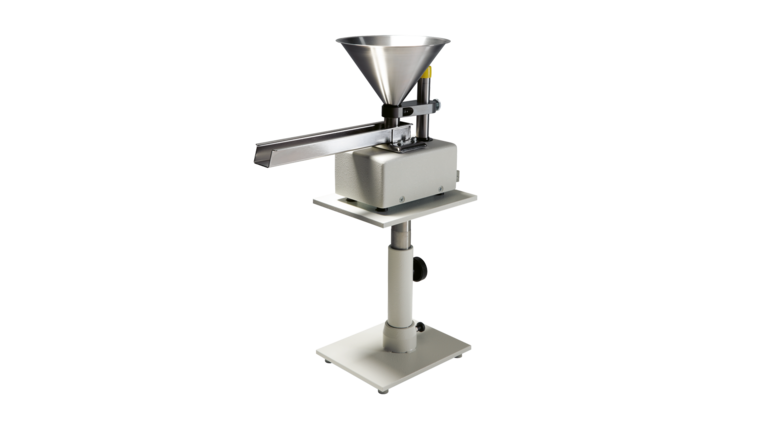

    Order your LABORETTE 24 with our practical stable, sturdy stand in which it is fitted slip-resistant – infinitely height-adjustable and rotatable and easily adaptable to any working situation.

    View accessories

    FRITSCH-TIPP

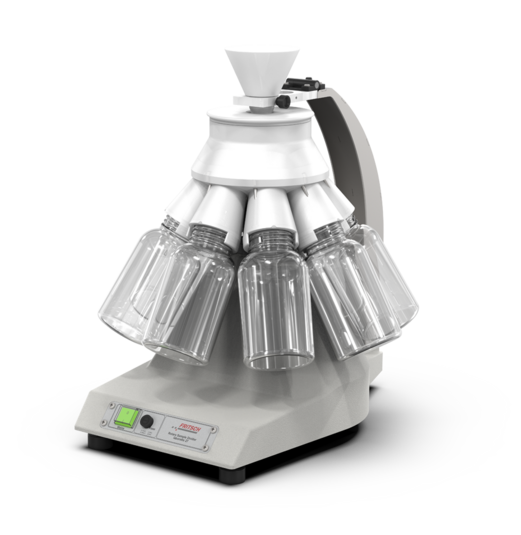

    The LABORETTE 24 is the perfect accessory for the combination with the FRITSCH Rotary Cone Sample Divider LABORETTE 27, the FRITSCH Rotor Mill P-14 premium line and Variable Speed Rotor Mill PULVERISETTE 14 classic line with automatic control of the channel vibration via the integrated interface – for perfect results and reliable reproducibility!

    Details Rotary Cone Sample Divider LABORETTE 27

    Details Rotor Mill P-14

    Details Variable Speed Rotor Mill PULVERISETTE 14 classic line

Order No.
24.0030.00
