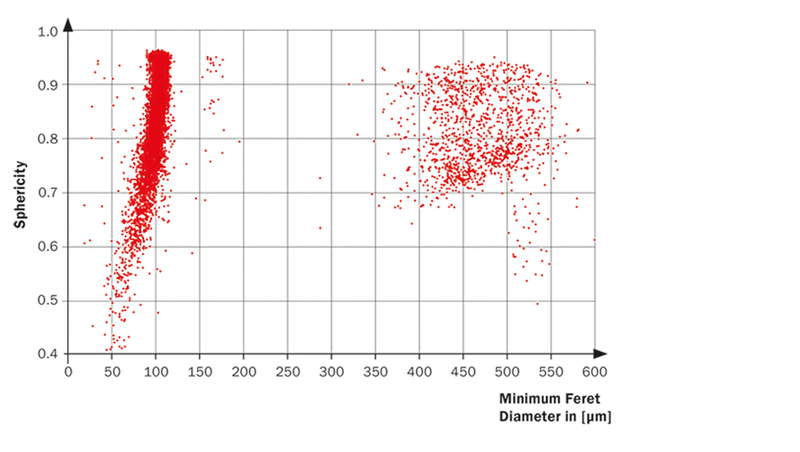

Each particle is one point: for more than 10,000 particles, the Sphericity is applied against the Minimum Feret Diameter.

Even the evaluation of the measuring results is uniquely simple with the ANALYSETTE 28. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud. The really important information for you about the morphology will be shown by the position of the data point in the Cloud.

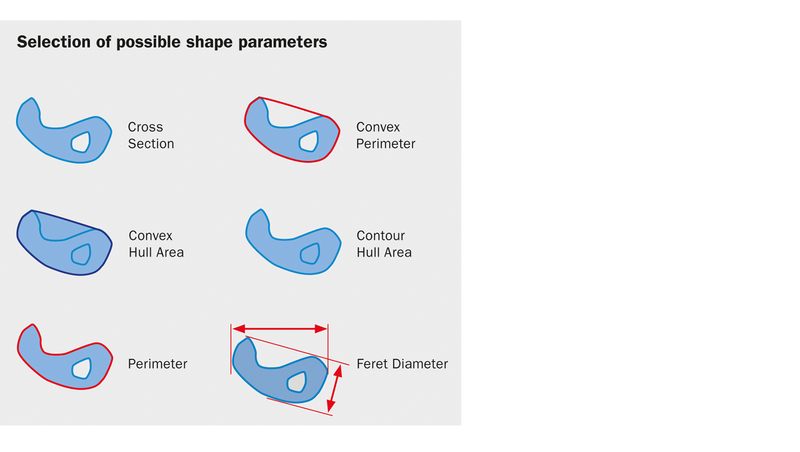

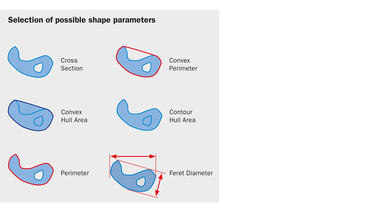

Just choose which statement is of interest to you: the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section.
Each particle can be clicked individually: For fast single image viewing, each individual particle can be opened directly with a mouse click from the clearly arranged The really important information for you about the morphology will be shown by the position of the data point in the Cloud. Without time-consuming search, you can immediately analyse, evaluate and delete individual selected particles. All available size and shape parameters are automatically displayed.

The FRITSCH Gallery

To get a quick overview of the typical particle shape of the analysed sample, view and evaluate all the images in a gallery which is integrated directly into the software for easy use. Individual particle images can be directly selected for single image analysis.

State of the art evaluation

Freely configurable report generator: For automatically displaying the results clearly arranged on the monitor, either as a Cloud, as a cumulative curve, as a bar chart or in a table form. Or define a layout according to your sieve analysis. The displayed results are printed out as you set it up on the monitor.

Several measurements in a chart: Have several measurements displayed simultaneously in a chart and you will immediately see the differences between the respective samples. A direct visual evaluation - brilliantly simple, uniquely flexible.
