MODULES ANALYSETTE 22

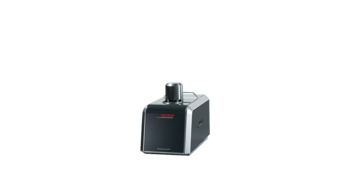

Module A-22
Wet Dispersion Unit
Measuring Unit ANALYSETTE 22 NanoTec - in order to use the FRITSCH Wet Dispersion Unit you will need the ANALYSETTE 22 NanoTec Measuring Unit (Order No. 22.8000.00).
Detailed information about the Measuring Unit ANALYSETTE 22
For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27

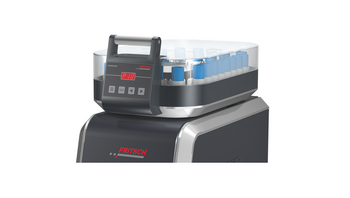

AutoSampler for the automation of measurement series
Ideal for efficient automation of measurement series: The practical FRITSCH AutoSampler provides automatic sample feeding as a simple attachment for the wet dispersion unit of the ANALYSETTE 22.
AutoSampler for the automation of measurement series
For the automation of measurement series, incl. 40 ml Containers.
For 100-240 V/1~, 50-60 Hz, 30 Watt.
Ideal for efficient automation of measurement series: The practical FRITSCH AutoSampler provides automatic sample feeding as a simple attachment for the wet dispersion unit of the ANALYSETTE 22.
Additional facts about the AutoSampler:
- Work completely independently right from the start
- 26 positions for 40 ml standard containers
- Reliable complete sample feeding due to tilt function and programmable rinsing function with a strong water jet
- Automatic assignment of the position and measuring result via software
- All function sequences, such as the dispersion and measurement duration, can be specified for each position separately and can be saved as a SOP standard list
- Practical Home button for automatically returning to position 1
Detailed information about the AutoSampler
Detailed information about the Wet Dispersion Unit
Sample containers 40 ml with screw lid for the AutoSampler.
Reference materials and certificates
Reference materials for regular inspection of the Laser Particle Sizer ANALYSETTE 22 NanoTec to ensure proper function. The reference materials offered by FRITSCH are delivered along with precise dispersion and measurement instructions and are accompanied by a certificate that states the upper and lower limits of the expected particle sizes. These limit values were determined using an internationally recognised process (NIST-traceable).
Certified reference materials (NIST-traceable) for performance verification according to ISO 13320
Test powder for wet dispersion, 10 - 100 µm (Box with 10 single-shots 0.5 g), certified reference material for performance verification of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion and for calibration according to ISO 13320 in regard to repeatability and reproducibility.
The test powder for wet dispersion is delivered in a box with 10 single-shots 0.5 g.
Also test suspensions for the inspection of the measurement precision as well as a test powder for dry dispersion are offered.
Test suspension nano (approx. 200 nm) for system check (box with 10 single-shots 5 ml) for the inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension nano for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.
Test suspension 1 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension 1 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision as well as test powders for the calibration of the Laser Particle Sizer ANALYETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.
Test suspension 10 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension 10 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.
FRITSCH reference materials according to ISO 13320
For calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec for wet and dry dispersion within the framework of a test equipment monitoring system as per ISO 13320.
The cost-efficient alternative (non-certified reference materials) for regular inspection of your Laser Particle Sizer ANALYSETTE 22.
The FRITSCH-test powder F-500, 0.5 - 50 µm is delivered in a handy 50 g bottle.
Certification
Set of IQ/OQ blank forms, (questionnaire format – standards and implementation not included).
For the support of the initial operation resp. examination of the function of the FRITSCH Laser Particle Sizer according to ISO 13320, FRITSCH offers appropriate questionnaires as blank forms. Certificates for tests according to ISO 13320 available on request:
Certificates for tests according to ISO 13320 for ANALYSETTE 22 NanoTec
We offer the Performance Verification for the wet and dry dispersion. The verification must be carried out directly on the instrument either here in Idar-Oberstein or at your site. Therefore, we would like to provide you with an individual offer – according to your needs.
Performance Verification for wet dispersion – Order No. 96.0080.00
Performance Verification for dry dispersion – Order No. 96.0081.00
Just contact:
Mr. Stefan Fröhlich,
phone: 0049 67 84 70 150
froehlich@fritsch.de
Spare parts for wet dispersion unit
Spare parts for the wet dispersion unit like cartridge, flow measuring cell, measuring cell glasses, seal sets.
Spare parts for wet dispersion unit
Cartrige with cpl. flow measuring cell incl. insertion block for insertion into the wet dispersion unit (article no. 22.8500.00).
This cartridge with cpl. flow measuring cell can also be used without the dispersion unit as a cuvette (volume approximately 10 ml).
Replacement flow measuring cell inclusive measuring cell glass 4 mm and 12 mm cpl. for inserting into the flow measuring cell of the
wet dispersion unit - article no. 22.8500.00
small volume wet dispersion unit SVA - article no. 22.8800.00
small volume wet dispersion unit SVM - article no. 22.8599.00
Replacement measuring cell glass 4 mm for inserting into the
flow measuring cell article no. 22.8560.04 (ANALYSETTE 22)
flow measuring cell article no. 28.2510.00 (ANALYSETTE 28)
Replacement measuring cell glass 12 mm for inserting into the following flow measuring cell article no. 22.8560.04 of the
wet dispersion unit - article no. 22.8500.00
small volume wet dispersion unit SVA - article no. 22.8800.00
small volume wet dispersion unit SVM - article no. 22.8599.00
The seal set Standard for flow measuring cell consists of O-rings and flow plate made of Viton® Extreme and can be utilized for the flow measuring cell article no. 22.8560.04 of the
wet dispersion unit - article no. 22.8500.00
small volume wet dispersion unit SVA - article no. 22.8800.00
small volume wet dispersion unit SVM - article no. 22.8599.00
The seal set Extended for extreme chemical resistance consists of O-rings and flow plate made of FFKM Kalrez® and can be utilized for the following flow measuring cell article no. 22.850.04 of the
wet dispersion unit - article no. 22.8500.00
small volume wet dispersion unit SVA - article no. 22.8800.00
small volume wet dispersion unit SVM - article no. 22.8599.00
