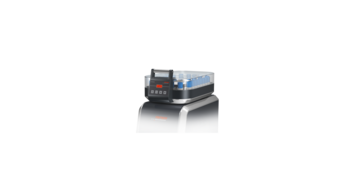

Module A-22 - for Wet Dispersion Unit AutoSampler

Accessories

In order to use the FRITSCH AutoSampler - you will need



For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27

Sample containers for AutoSampler

The AutoSampler is delivered with 26 sample containers for 40 ml.

Select sample further sample containers

Sample containers 40 ml with screw lid

sample containers 40 ml with screw lid
No. 83.3115.00

Sample containers 40 ml with screw lid for the AutoSampler.


Reference materials and certificates

Reference materials for regular inspection of the Laser Particle Sizer ANALYSETTE 22 NanoTec to ensure proper function. The reference materials offered by FRITSCH are delivered along with precise dispersion and measurement instructions and are accompanied by a certificate that states the upper and lower limits of the expected particle sizes. These limit values were determined using an internationally recognised process (NIST-traceable).

SELECT REFERENCE MATERIAL

Certified reference materials (NIST-traceable) for performance verification according to ISO 13320

test powder for wet dispersion, 10 - 100 µm
No. 85.2220.00
Test powder for wet dispersion, 10 - 100 <span class="to-lower">µm</span>

Test powder for wet dispersion, 10 - 100 µm (Box with 10 single-shots 0.5 g), certified reference material for performance verification of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion and for calibration according to ISO 13320 in regard to repeatability and reproducibility.
The test powder for wet dispersion is delivered in a box with 10 single-shots 0.5 g.
Also test suspensions for the inspection of the measurement precision as well as a test powder for dry dispersion are offered.


test suspension nano (approx. 200 nm) for system check
No. 85.2240.00
Test suspension nano (approx. 200 <span class="to-lower">nm</span>) for system check

Test suspension nano (approx. 200 nm) for system check (box with 10 single-shots 5 ml) for the inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension nano for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.


test suspension 1 µm for system check
No. 85.2250.00
Test suspension 1 <span class="to-lower">µm</span> for system check

Test suspension 1 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension 1 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision as well as test powders for the calibration of the Laser Particle Sizer ANALYETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.


test suspension 10 µm for system check
No. 85.2260.00
Test suspension 10 <span class="to-lower">µm</span> for system check

Test suspension 10 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec, which is used for wet dispersion.
The test suspension 10 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec according to ISO 13320 in regard to repeatability and reproducibility are also offered.


FRITSCH reference materials according to ISO 13320

FRITSCH-test powder F-500, 0.5 - 50 µm, for wet and dry dispersion
No. 85.2100.00
FRITSCH-test powder F-500, 0.5 - 50 <span class="to-lower">µm</span>, for wet and dry dispersion

For calibration of the Laser Particle Sizer ANALYSETTE 22 NanoTec for wet and dry dispersion within the framework of a test equipment monitoring system as per ISO 13320.
The cost-efficient alternative (non-certified reference materials) for regular inspection of your Laser Particle Sizer ANALYSETTE 22.
The FRITSCH-test powder F-500, 0.5 - 50 µm is delivered in a handy 50 g bottle.


Certification

set of IQ/OQ blank forms
No. 96.1000.00
Set of IQ/OQ blank forms

Set of IQ/OQ blank forms, (questionnaire format – standards and implementation not included).
For the support of the initial operation resp. examination of the function of the FRITSCH Laser Particle Sizer according to ISO 13320, FRITSCH offers appropriate questionnaires as blank forms. Certificates for tests according to ISO 13320 available on request:


Certificates for tests according to ISO 13320 for ANALYSETTE 22 NanoTec
We offer the Performance Verification for the wet and dry dispersion. The verification must be carried out directly on the instrument either here in Idar-Oberstein or at your site. Therefore, we would like to provide you with an individual offer – according to your needs.
Performance Verification for wet dispersion – Order No. 96.0080.00
Performance Verification for dry dispersion – Order No. 96.0081.00
