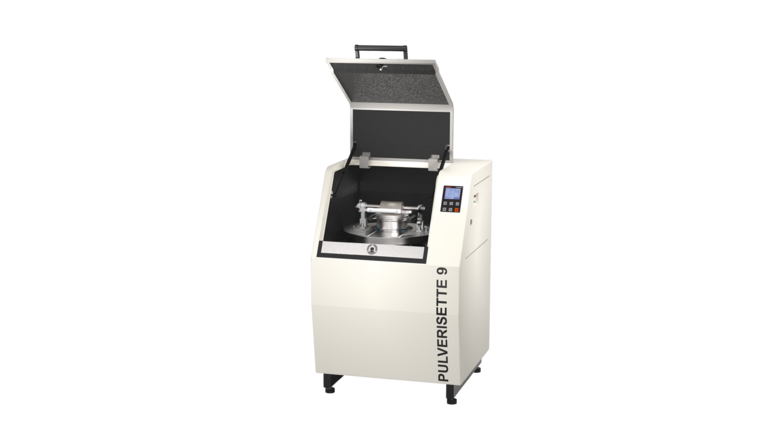

Vibrating Cup Mill PULVERISETTE 9




AT A GLANCE

  • More power with new drive concept
  • Extra-fast grinding with up to 1500 rpm
  • Precise adjustment of rotational speed, grinding time and pause periods
  • Programming and storage of grinding cycles

Ideal for

  • GLASS AND CERAMICS INDUSTRY
  • MINING AND METALLURGY
  • GEOLOGY AND MINERALOGY
  • CHEMICAL INDUSTRY
  • SOIL RESEARCH
  • OVERVIEW

    Stronger, Faster, Better

    The new, completely modified FRITSCH Vibrating Cup Mill PULVERISETTE 9 offers many practical advantages in all areas in which hard, brittle and fibrous material must be ground extremely quick down to analytical fineness. Now with increased grinding power and a completely new drive concept, even safer and easier to tension the grinding set, especially quiet, simple to operate and quick to clean.

  • WORKING PRINCIPLE

    Optimised grinding process via torque-optimised frequency converter

    In the Vibrating Cup Mill, the grinding is performed by horizontal circular oscillations of the grinding set on a vibrating plate. The grinding set consisting of ring and puck comminute the grinding sample with extremely high pressure, impact forces and friction. In this form of grinding, the transmission of forces onto the grinding sample is much more important than the pure motor power. For this reason, FRITSCH as the first provider worldwide, developed for the PULVERISETTE 9 a special motor and now equipped it with an especially interference-resistant, torque-optimised frequency converter which fulfils all the relevant safety standards worldwide. It ensures that the motor output is precisely matched to the grinding material and grinding set - which optimises the energy consumption.

  • FEATURES
    • More power with new drive concept
    • Extra-fast grinding with up to 1500 rpm
    • Precise adjustment of rotational speed, grinding time and pause periods
    • Programming and storage of grinding cycles
    • Self-explanatory multilingual menu navigation

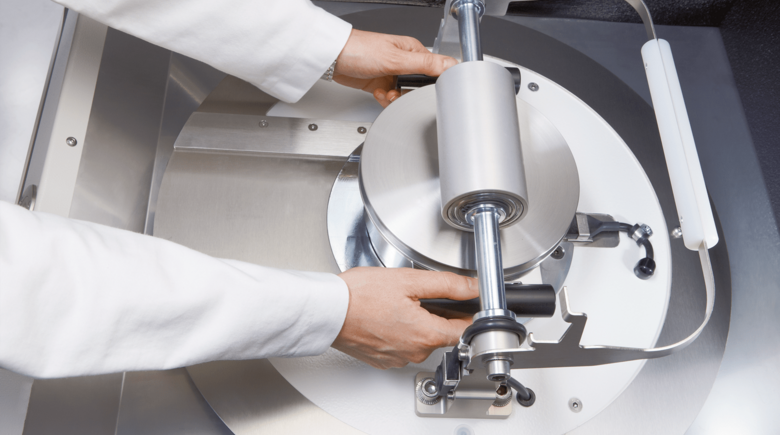

    • Optimised tensioning of grinding set with anti-twist tensioning
    • Especially safe hood locking
    • Complete soundproof lining
    • Ergonomically optimized working position - grinding set is placed on a guide rail and easily moved to the final position
    • Detector detect agate grinding sets reducing rotational speed
    • Especially light grinding sets with heat insulated handles

    View extensive accessories

  • EQUIPMENT

    Configure your Vibrating Cup Mill PULVERISETTE 9 exactly to your specific application

    Select the appropriate grinding set: Grinding sets in 5 different materials and 3 different sizes from 50 ml to 250 ml volume are available for the FRITSCH PULVERISETTE 9 – for each application the suitable one. The grinding set material must also be harder than the material to be ground though.
    FRITSCH also supplies heavy duty wheels with an arresting brake for the PULVERISETTE 9 – making your mill mobile!
    Also available is a practical manually-operated hydraulic FRITSCH Pellet Press.

    View extensive accessories

  • Applications / Solutions

    • Crushing concrete coarsely and fine

      Concrete is a complex material, which its characteristics due to its composition and as a result of the systematic addition of additives can be adjusted very differentiated. However, this results in the demand to monitor this composition for two reasons: in order to ensure the desired useful properties and also to ensure the quality of the mixture.

      read more

    • Comminution of ferro alloys

      In the metallurgy an alloy is a mixture with metallic characteristics consisting of two or more chemical elements, from which at least one is a metal. Different and altering compositions always result in an analysis of the contents.

      read more

    • Your cell phone turns into dust

      For the sample preparation for the RoHS analysis, several steps are necessary in order to achieve the desired degree of fineness. Optimal here are FRITSCH Mills.

      read more

Order No.
09.5000.00
Janine Allkofer
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Phone +49 67 84 70 0

Grinding report database

Test now

Free of charge sample grinding

Send us your sample and we will perform a sample grinding - you will receive your individual grinding report.
